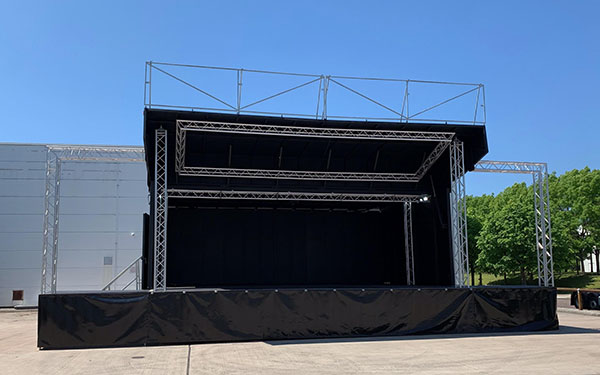

ES40 Mobile stage for hire

This ES40 stage is 13m x 7m including PA wings. It has a 59m² performance area.

The ES40 takes between 45 and 60 minutes to set up and 35 minutes to De-rig.

We have two smaller stages, the 32m² ES32 and the 48m² ES38.

Stage comes with 1 set of access steps.

We offer disabled ramps for all our stages. Please call us to discuss the needs for your event.

Don’t forget we can also provide you with the Pit Barriers / Mojo Barriers for the front of the stage.

We don’t supply the lighting and PA but we can put you in contact with companies we work with who can supply the Lighting and PA equipment.

If you would like to take advantage of the branding opportunity on the ES40 mobile stage you can:

  • Deploy 2x PA Mesh Banners 3200h x 2250w.
  • These would need to be made from mesh so the sound from the speakers can travel through them.
  •  You will also need to supply Wire ties/Cable ties 450mm
  • Top header for banner 8.8m x 1m

ES40 Video

ES40 Truck
The ES40 is built on a Artic trailer

ES40 Gallery

The ES40 has great advertising opportunities and looks great.

ES40 Mobile Stage
ES 40 Mobile Stage
ES40 staging
ES40 Mobile staging
ES40 Stage for events
ES40 Stage for hire
ES40 stage for concerts
ES40 for parties

ES40 Stage specification

  • 13mx7m including PA wings
  • Stage dimensions; 13m(w) x 7m(l) x 5.5m(h)
  • Stage Clearance Height: 4m(h)
  • Stage area; 59m²
  • Platform height; 1.2m
  • PA / Sound Platform Wings
  • Mesh banners for the PA wings on the ES40 mobile stage are 3200hx2250w
  • Roof: Intelligent Hydraulic Roof System
  • Roof Safe Working Load Truss 1st 200kg,2nd 300kg,main beam across the Centre 500kg. 2x truss vertical 50kg each
  • Stage platform loading; 300kg/m2
  • Max wind speed; 39.6mph
  • Construction time:45 to 60 minutes
  • Custom can supply your own Branding
  • Stage floor in Black
  • Disability access ramp available on request
